1.3 Card Reader


NEW UPDATE

  • Besides all the major credit cards, InfiKIOSK now accepts tap payments like Apple Pay, Google Pay and Samsung Pay.

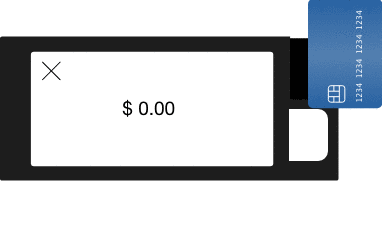

  • InfiREADER2.0 includes  two parts:

  1. Display screen: shows the payment details

  2. Card reader: accepts insert and tap payment

Turn On/Turn Off/Restart

  • Hold the button on the right side of the Display Screen to turn on it.

  • If you need to Restart or Turn it off: Hold the same button, and select “Restart” or “Power Off” on the screen.

  • Video Support: https://www.youtube.com/watch?v=2UJzE8v4zsg

WIFI Setting

  1. lick the button on the right top of the Display Screen

  2. Select “Exit Lockdown

  3. Enter Password:123456 and Confirm

  4. Go to “Setting” → “WIFI Setting”

  5. Connect the WIFI

  6. Back to Main Screen, and Select “InfiREADER”

Connect/Identify/ Disconnect the Card Reader to Display Screen

  • The Colored Box on the screen  shows your Card Reader Connecting Status:

  1. Click the button on the right top of the Display Screen

  2. Select “ Reader Setting

  3. Enter Password:123456 and Confirm

  4. Click “ Connect the reader”

  5. Press the button on the back of the InfiREADER

  6. Hold for a while until the lights on the Card Reader flash orange

  7. Release the button

  • ​If you want to Identify/Disconnect the Card Reader or check its status, while the Card Reader is connected.

  1. Follow the steps 1-3, and click the Connected Card Reader Option on the Screen

  2. Select “ Identify This Reader “, the card reader light will flash, and it is identified.

  3. Select “Disconnect” to disconnect the card reader.
